Description

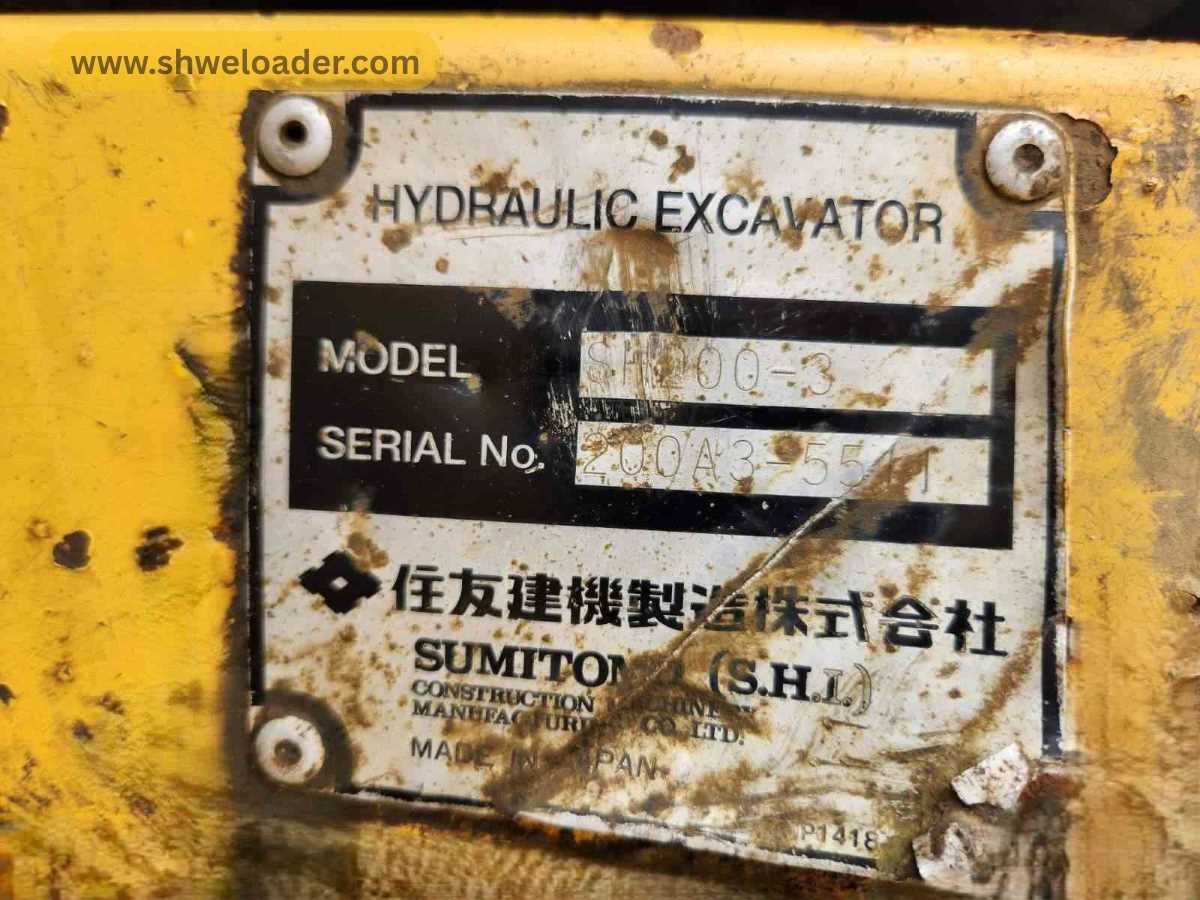

Sumitomo SH200-3 (2004) — General Specifications

Machine class
Operating weight: ≈20,000–20,300 kg
Standard bucket capacity (ISO heaped): 0.80 m³ – 0.93 m³
Tail swing radius: 2,750 mm (conventional type)

Engine

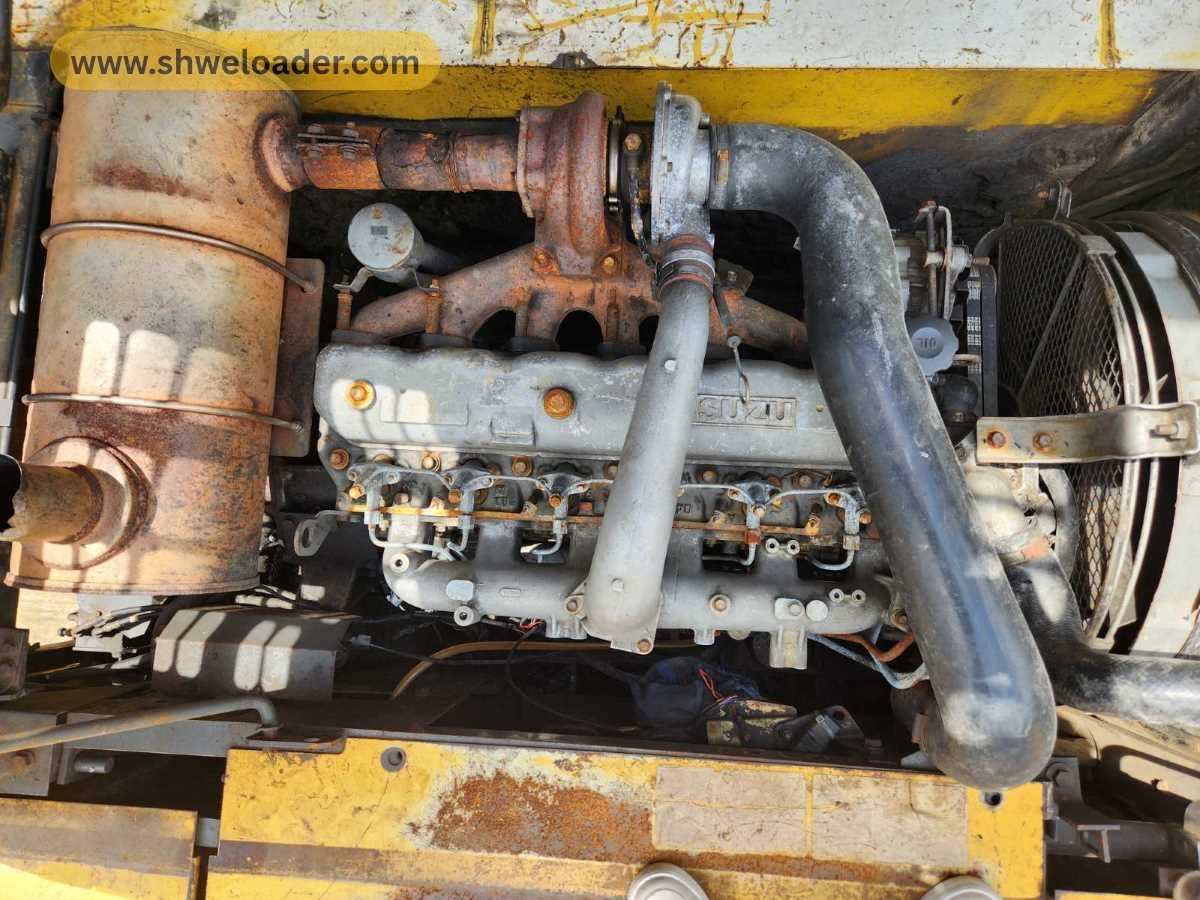

Make/model: Isuzu 6BG1T (turbocharged, water-cooled, 6-cylinder diesel)
Rated power: 103 kW (138 hp) @ 2,000 rpm
Displacement: 6.5 L
Dimensions (standard configuration)
Overall length: 9,450 mm
Overall width: 2,800 mm (with 600 mm shoe)
Overall height (to cab top): 2,960 mm

Hydraulics
System: 2 × variable displacement piston pumps + 1 gear pump
Max flow: 2 × 208 L/min
Main relief pressure: 34.3 MPa (with power boost up to ~37 MPa)
Hydraulic oil tank capacity: ≈200 L

Fuel tank: ≈340 L
