Description

General Specification -

1. Concrete yield: 2.5 m³ per batch (≈65 m³/day).

2. Drive system: 4×4 hydrostatic with 4-wheel steering (2WS/4WS/crab).

3. Drum rotation/discharge: 245° rotation, 360° dumping control.

4. Engine options: Perkins 1104D-44T (74.5 kW) or Kohler KDI 2.5 TCR.

5. Max travel speed: ≈30 km/h.

6. Operating weight: ≈5,700 kg.

7. Fuel tank capacity: 90 L.

8. Water tank capacity: 570 L.

9. Ground clearance: 370 mm.

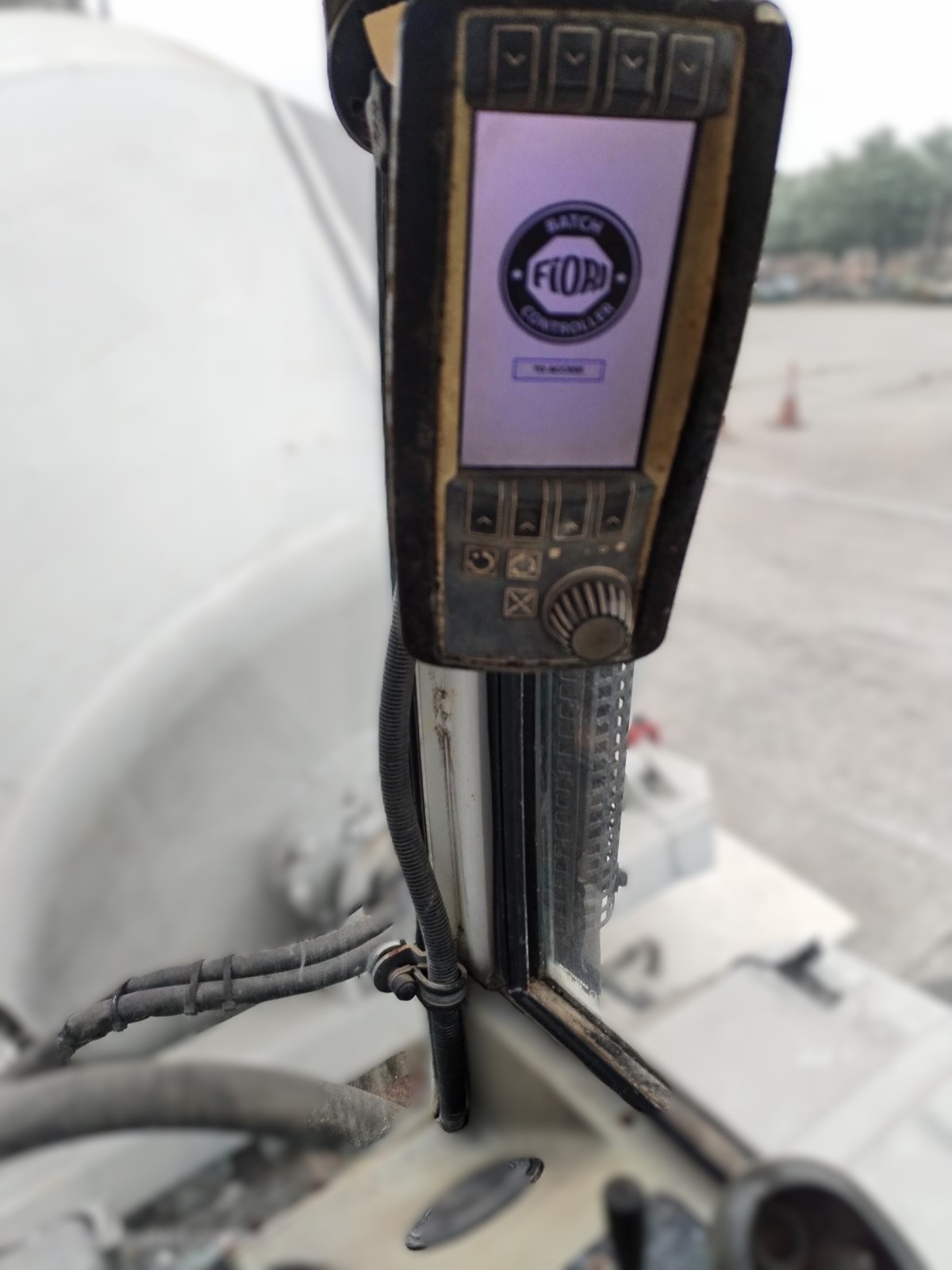

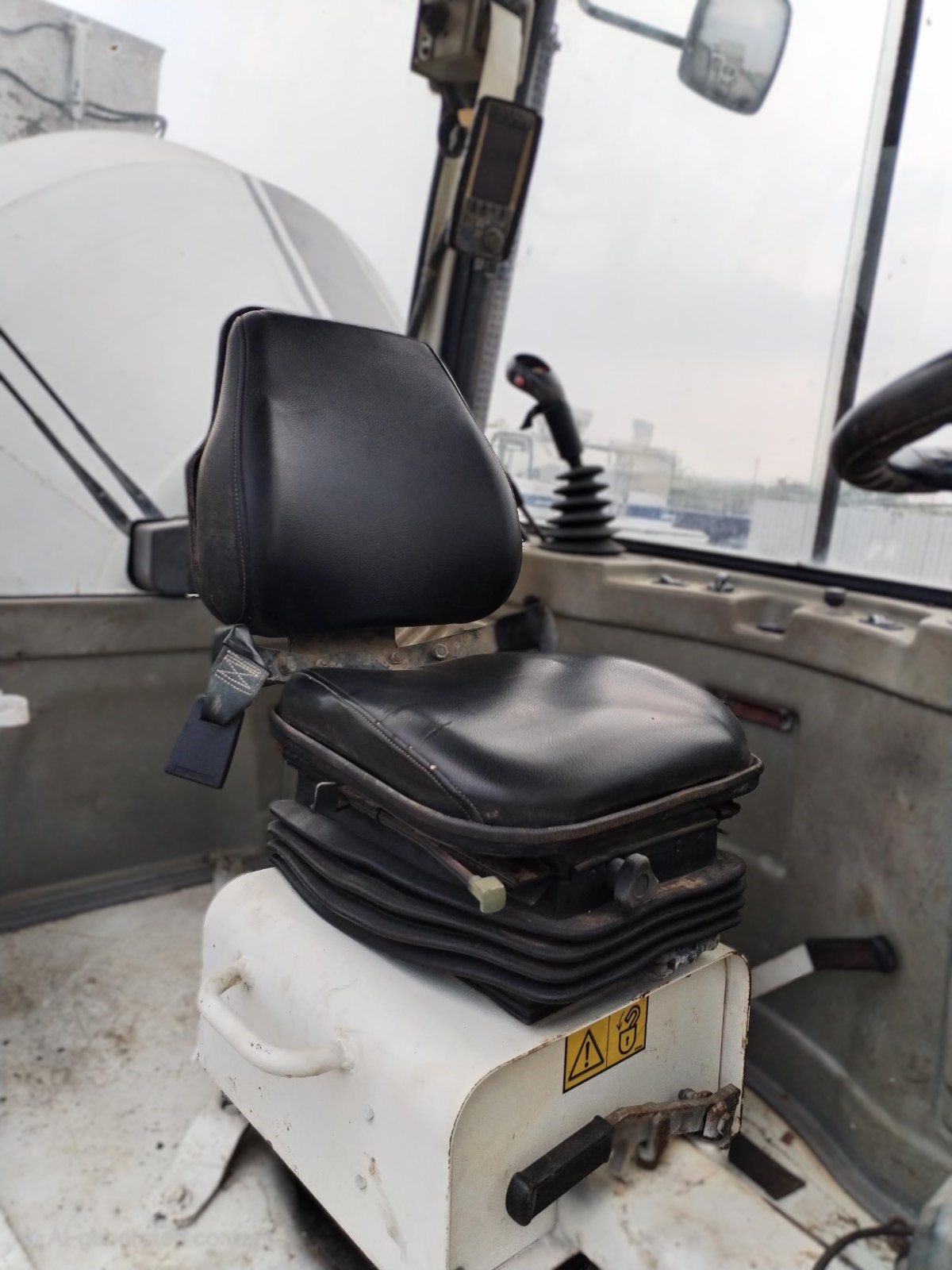

10. Cab features: ROPS/FOPS closed cab, reversible driver seat, CBV batching computer option.
