Description

*The breaker line and attachment are included with this machine.

General Specifications:

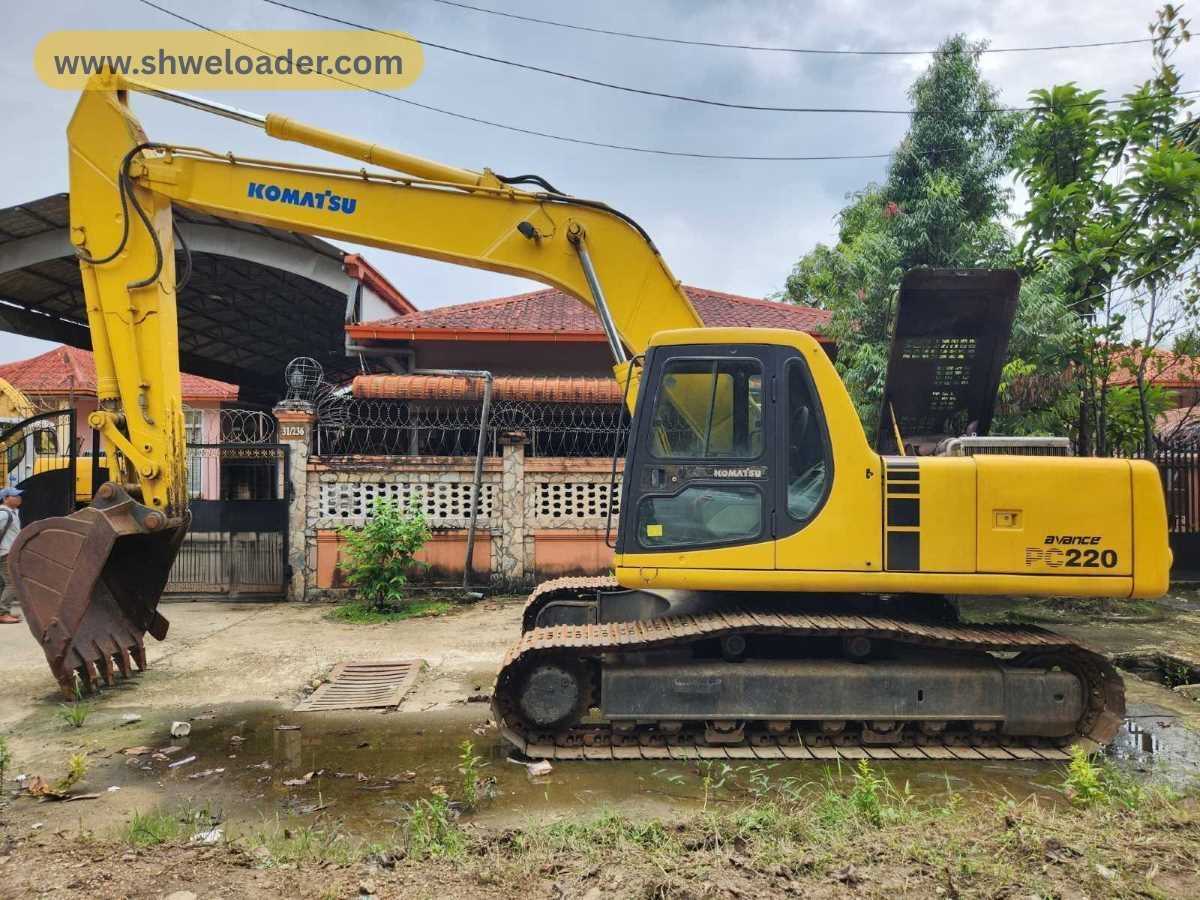

Machine class
Operating weight: ≈20,500 – 21,500 kg (varies with configuration)
Standard bucket capacity (ISO heaped): 0.8 – 1.2 m³
Tail swing: Conventional

Engine

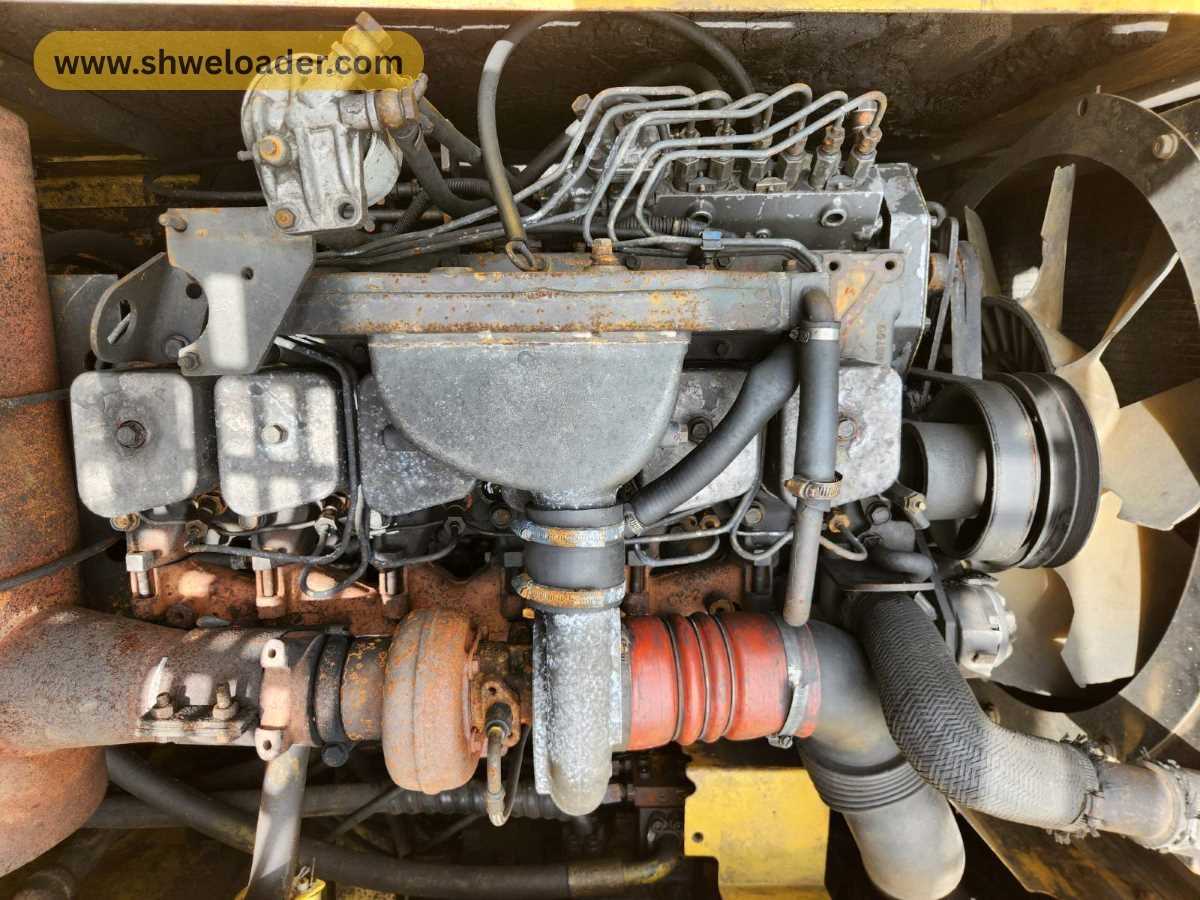

Make/model: Komatsu SAA6D95LE (turbocharged, 6-cylinder diesel, Tier 1)
Rated output: 110 kW (148 hp) @ 1,950 rpm
Displacement: 6.69 L

Hydraulics

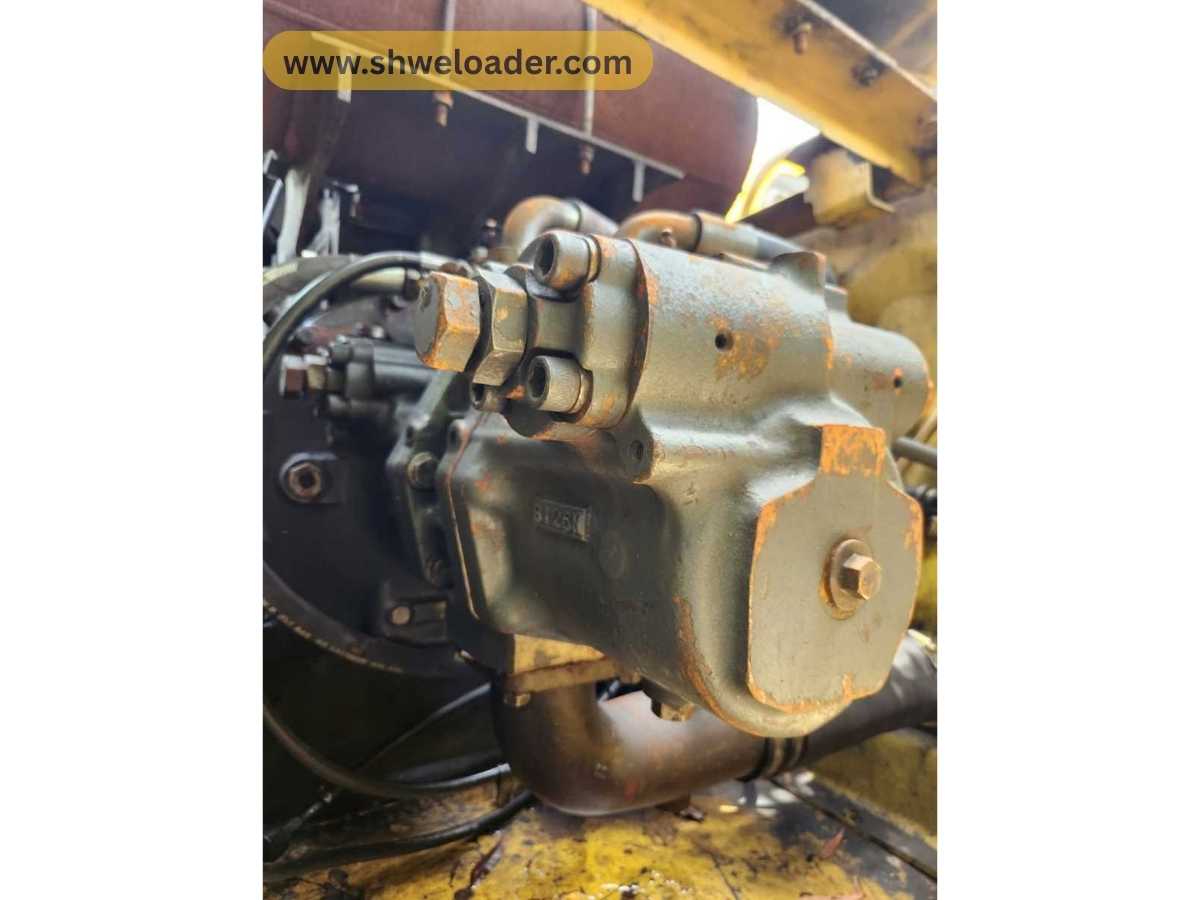

System: 2 × variable displacement axial piston pumps
Max pump flow: 2 × 208 L/min
Main relief pressure: 34.3 MPa
Hydraulic oil tank capacity: ≈220 L

Speeds & capacities
Travel speed: 3.3 / 5.5 km/h (low/high)
Swing speed: 11.0 rpm
Ground pressure: ≈48 kPa (with 600 mm shoes)

Fuel tank: ≈400 L
